Advent of CSS 2024 - Day 3 - Tooltip

January 11, 2025

Welcome to the 3rd day of Advent of CSS 2024. Today we will build a tooltip with arrow.

Introduction

We will build a tooltip with this requirement:

When you hover over the text, the tooltip should appear.
When you roll off the text, the tooltip should disappear.
There are no additional project files today. Everything, including the arrow should be created with CSS.

Tooltip

Coding

Build the structure

For the HTML we only need to create a Tooltip component and pass the position prop to it. We can use the data-position attribute to set the position of the tooltip.

<div class="tooltipz" data-position="top">
  <div class="tooltipz__content">Tooltip text</div>
  My Text
</div>

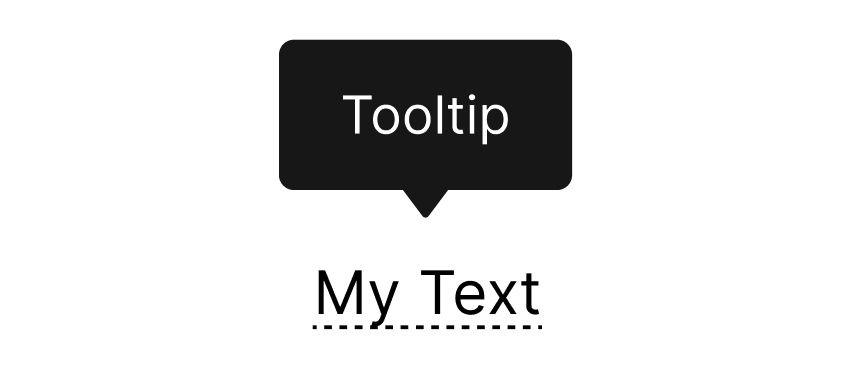

Result

My Text

Top tooltip

My Text

Right tooltip

My Text

Bottom tooltip

My Text

Left tooltip

Full source code:

116 collapsed lines
---
interface Props {
  position?: "top" | "right" | "bottom" | "left";
}

const { position = "top" }: Props = Astro.props;
---

<div class="tooltipz" data-position={position}>
  <div class="tooltipz__content">My Text</div>
  <slot />
</div>

<style>
  :root {
    --arrow-height: 8px;
    --arrow-space: calc(var(--arrow-height) + 4px);
    --arrow-side-length: calc(var(--arrow-height) * 0.866);
    --z-index-tooltip: 10;
    --bg-tooltip: var(--color-base-content);
  }

  .tooltipz {
    display: inline-block;
    position: relative;
  }

  .tooltipz__content {
    position: absolute;
    background-color: var(--bg-tooltip);
    color: var(--color-base-100);
    padding: 0.5rem 1rem;
    border-radius: 8px;
    z-index: var(--z-index-tooltip);
    opacity: 0;
    visibility: hidden;
    white-space: nowrap;
    text-align: center;
    transition: opacity 0.3s ease-in-out;
  }

  .tooltipz:hover .tooltipz__content,
  .tooltipz:focus .tooltipz__content {
    opacity: 1;
    visibility: visible;
    transition: opacity 0.3s ease-in-out;
  }

  .tooltipz__content::before {
    content: "";
    position: absolute;
    width: 0;
    height: 0;
    z-index: var(--z-index-tooltip);
  }

  /* Top */
  .tooltipz[data-position="top"] .tooltipz__content {
    bottom: calc(100% + var(--arrow-space));
    left: 50%;
    transform: translateX(-50%);
  }
  .tooltipz[data-position="top"] .tooltipz__content::before {
    top: 100%;
    left: 50%;
    border-top: var(--arrow-height) solid var(--bg-tooltip);
    border-right: var(--arrow-side-length) solid transparent;
    border-left: var(--arrow-side-length) solid transparent;
    transform: translateX(-50%);
  }

  /* Right */
  .tooltipz[data-position="right"] .tooltipz__content {
    bottom: 50%;
    left: calc(100% + var(--arrow-space));
    transform: translateY(50%);
  }
  .tooltipz[data-position="right"] .tooltipz__content::before {
    right: 100%;
    top: 50%;
    border-top: var(--arrow-side-length) solid transparent;
    border-bottom: var(--arrow-side-length) solid transparent;
    border-right: var(--arrow-height) solid var(--bg-tooltip);
    transform: translateY(-50%);
  }

  /* Bottom */
  .tooltipz[data-position="bottom"] .tooltipz__content {
    top: calc(100% + var(--arrow-space));
    left: 50%;
    transform: translateX(-50%);
  }
  .tooltipz[data-position="bottom"] .tooltipz__content::before {
    bottom: 100%;
    left: 50%;
    border-left: var(--arrow-side-length) solid transparent;
    border-right: var(--arrow-side-length) solid transparent;
    border-bottom: var(--arrow-height) solid var(--bg-tooltip);
    transform: translateX(-50%);
  }

  /* Left */
  .tooltipz[data-position="left"] .tooltipz__content {
    top: 50%;
    right: calc(100% + var(--arrow-space));
    transform: translateY(-50%);
  }
  .tooltipz[data-position="left"] .tooltipz__content::before {
    left: 100%;
    top: 50%;
    border-top: var(--arrow-side-length) solid transparent;
    border-bottom: var(--arrow-side-length) solid transparent;
    border-left: var(--arrow-height) solid var(--bg-tooltip);
    transform: translateY(-50%);
  }
</style>

References

Advent of CSS 2024 - Day 3
